AS 1684.2

Table 25 — Strutting/Hanging Beams

Select inputs

Inputs

Results

Reference — AS 1684.2 Figure 7.22

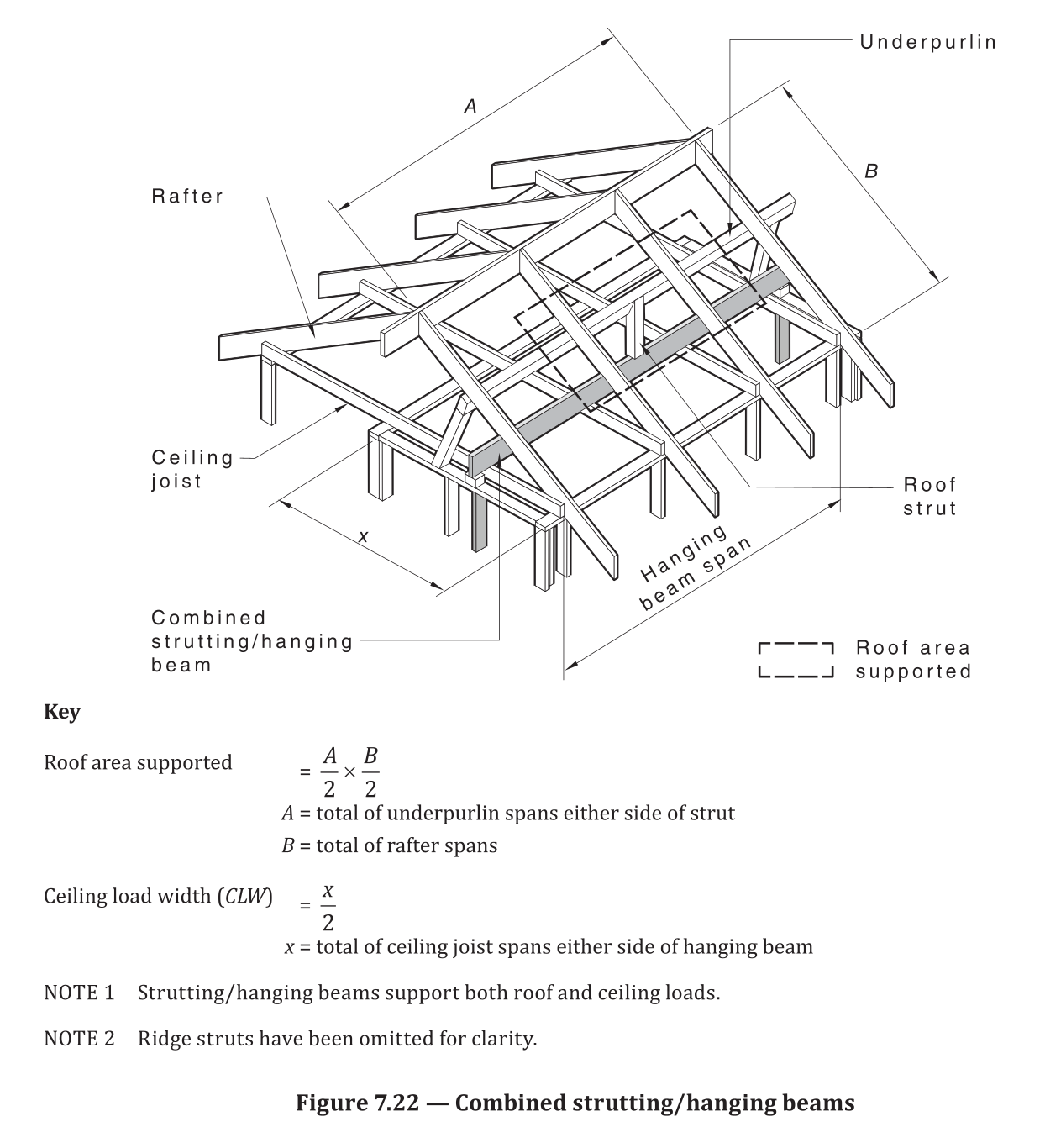

AS 1684.2 Figure 7.22 — Combined strutting/hanging beams
Figure 7.22 — Combined strutting/hanging beams (AS 1684.2-2021)

Table 25 — Strutting/Hanging Beams supporting combined roof and ceiling loads (max ceiling 12 kg/m²).

Sheet roof: maximum total roof mass 20 kg/m². Tile roof: maximum total roof mass 60 kg/m².

CLW = x/2, where x = total of ceiling joist spans either side of the strutting/hanging beam.

Where hanging beam spans are not the same each side, use the average of the spans.

Multiple members shall be nailed together per Clause 2.3. Minimum bearing = 70 mm at end supports.

Where depth-to-breadth ratio > 3:1, provide G.I. strapping restraint to top edge at beam ends (Clause 7.2.26).

Spans are independent of wind classification.
